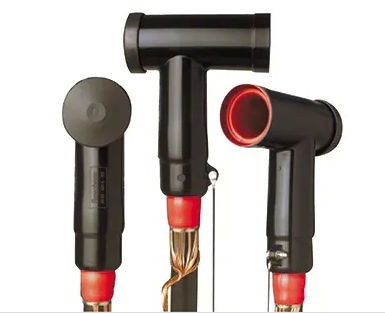

Kit de cotovelo de engenharia

Kit de cotovelo de engenharia

  • Quantidade de pedido mínimo: 1
obtenha o ultimo preço
    PRODUCT ATTRIBUTES
    Overview
    Overview
    Embalagem & Entrega
    Descrição do produto

    Os principais recursos incluem:


    Corrente nominal: 400A (carga contínua), resistência a curto tempo 20ka/1s.
    Tipo de interface: compatível com IEEE 386, adequado para interface do tubo (por exemplo, revestimento de 200a/600A).
    Nível de proteção: IP67 (estado acasalado), adequado para enterro direto ao ar livre ou ambiental molhado
    do cabo.



    Parameters Technical indicators
    Rated voltage 15kV (maximum applicable voltage 24kV)
    Rated current: 400A (temperature rise≤55K)
    Lightning impulse withstand voltage 110kV (peak)
    Power Frequency Withstand Voltage 45kV/1min (Dry)
    Contact resistance ≤25μΩ (mated)
    Mating life: ≥500 times (with load mating)
    Insulation EPDM or silicone rubber (weather resistance)
    Shielded design: fully shielded or semi-shielded (optional)
    Compatible cable single core 25-500mm² (copper or aluminum conductor)

    Cenários de aplicação


    -Conexão da unidade principal do ringue: conexão de plug-in de entrada/saída de cabo
    -Acesso ao transformador: os transformadores podem ser substituídos ou testados sem uma queda de energia
    -Operação ByPass: Comutação ou manutenção temporária de carga
    -Sistema de energia novo: PV/ENTERMELHO DE CAIXA DE CAIXA DE ENERGIA DE ENTRA
